FTS Needle Valve

Needle Valve

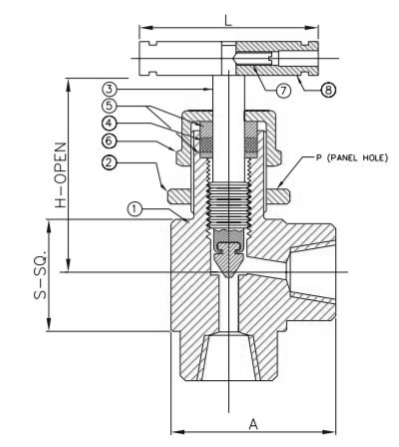

Angle Pattern Female x Female


  • Bar stock Body construction.

  • Angle with Panel Mounting optional.

  • Metal to Metal or Stellited seats. Stem threads Rolled and hard plated and tie stellied (Vee Regulating one piece or nonregulating) or non-rotating ball tip optional.

  • 2 piece Chevron packed offers zero leak, sealing over conventional packing design.

  • Variety of End connections include "FTS” single or twin ferrule tube fittings, Male or Female N. P. T. and I. S. O., DIN and JIS tapered pipe ends.

  • Maximum Working Pressure : 6000 PSI (400 bar) at 200 o C. 10000 PSI (700 bar) at 120 o C.

  • 100% Factory tested.
